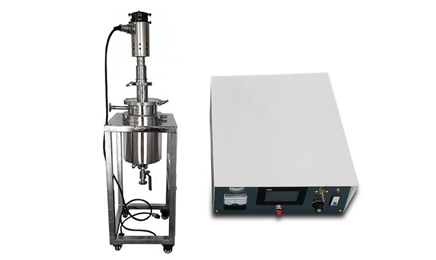

DH-ZS3000W
Ultrasonic nanomaterial disperser
Continuous dispersing capacity of mixing method: 50-100L/day, maximum adjustable ultrasonic power: 3000W.

DH-ZS3000W ultrasonic material nano-dispersion machine has functions of constant temperature, temperature control, and optional continuous feeding, with strong scalability. It is also suitable for the extraction of traditional Chinese medicine, cell and bacterial wall disruption, and dispersion and emulsification of nano materials in chemical engineering. It is suitable for small-batch production or providing accurate technical parameters for future industrial production.

Product Introduction
DH-ZS3000W ultrasonic nanomaterial disperser has functions of constant temperature, temperature control, and optional continuous feeding. It has strong scalability and is also suitable for the extraction of traditional Chinese medicine, cell and bacterial wall disruption, as well as dispersion and emulsification of nanomaterials in the chemical industry. It is suitable for small batch production or providing accurate technical parameters for future industrial production.
The core of ultrasonic nanotechnology is how to solve the problem of nanoparticle aggregation. Due to the easy aggregation of nanoparticles themselves, it is very difficult to obtain single dispersed nanoparticles. The key technology of nanotechnology is how to uniformly disperse nanoparticles into the matrix. Our company's series of ultrasonic products use the cavitation effect of ultrasonic waves to disperse aggregated particles. The required particle suspension (liquid) is placed in a strong ultrasonic field and processed with an appropriate ultrasonic amplitude. Due to the inherent characteristics of powder particle aggregation, for some powders that are not well dispersed in the medium, an appropriate amount of dispersant can be added to maintain a dispersed and stable state, generally achieving tens of nanometers, or even smaller. This product is especially effective in dispersing nanomaterials such as carbon nanotubes, graphene, and silica, and is currently receiving attention from all parties.

Product Introduction

DH-ZS3000W ultrasonic nanomaterial disperser has functions of constant temperature, temperature control, and optional continuous feeding. It has strong scalability and is also suitable for the extraction of traditional Chinese medicine, cell and bacterial wall disruption, as well as dispersion and emulsification of nanomaterials in the chemical industry. It is suitable for small batch production or providing accurate technical parameters for future industrial production.

The core of ultrasonic nanotechnology is how to solve the problem of nanoparticle aggregation. Due to the easy aggregation of nanoparticles themselves, it is very difficult to obtain single dispersed nanoparticles. The key technology of nanotechnology is how to uniformly disperse nanoparticles into the matrix. Our company's series of ultrasonic products use the cavitation effect of ultrasonic waves to disperse aggregated particles. The required particle suspension (liquid) is placed in a strong ultrasonic field and processed with an appropriate ultrasonic amplitude. Due to the inherent characteristics of powder particle aggregation, for some powders that are not well dispersed in the medium, an appropriate amount of dispersant can be added to maintain a dispersed and stable state, generally achieving tens of nanometers, or even smaller. This product is especially effective in dispersing nanomaterials such as carbon nanotubes, graphene, and silica, and is currently receiving attention from all parties.

Product Applications
⒈ Traditional Chinese medicine extraction
⒉ Cell and bacteria wall disruption
⒊ Dispersion and emulsification of nano-chemical materials
⒋ Especially effective for dispersing nano materials such as carbon nanotubes, graphene, silicon dioxide, etc.

Technical Parameters
Model:	DH-ZS3000W
Frequency:	20KHz automatic tracking
Maximum Ultrasonic Power:	3000W adjustable
Random Titanium Alloy Amplitude Bar:	Φ40 multi-point lengthened type
Optional Amplitude Bars:	Φ20, Φ25, Φ30, Φ38, Φ50, Φ60
Single Dispersion Capacity:	500-5000 (different containers need to be equipped)
Continuous Dispersion Capacity:	50-100L/day
Sample Temperature Measurement and Control Function:	Yes
Input Method:	Touch Control
Display Method:	4.3-inch TFT
Data Storage:	20 groups
Ultrasonic Time Setting:	Continuous or pulse mode can be freely selected
Maximum Total Working Time:	99H59M59S
Protection Device:	Self-diagnosis function, program automatic error correction, overload, over-temperature protection, etc.
Login Password Protection:	Yes
5L High Borosilicate Glass Reactor:	Standard
Reactor Stirring Function:	Yes
Operating Voltage:	AC220V 50Hz
Jacket:	Yes
Discharging valve:	Yes
Temperature-controlled bath:	Optional
Computer communication function:	Optional

Single Page - Color Page
Name:	Author:	Action:
Ultrasonic nanomaterial disperser DH-ZS3000W	ultrasonic	Download

Product List

DH-ZS3000W	Unit
Host Machine	Unit
Special Cooling Equipment	Set
Reaction vessel	set
Power cord	piece
User manual	copy
Warranty card	copy
Certificate of qualification	copy

Description: 1; Optional; Optional capacity; 1; 1; 1; 1
