  • High-throughput tissue homogenizer
  • freezing Tissuelyser
  • 3D High-throughput Homogenizer
  • hair Tissuelyser
  • slap type homogenizer
  • Tissue Homogenizer
  • Benchtop homogenizer
  • homogenizer
  • DHTISSUE-24D
  • DHTISSUE-24D
  • homogenizer
  • 24*(0.2-0.5ML) /24*2ML

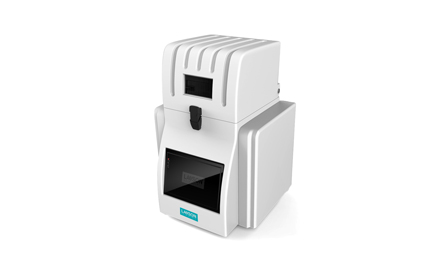

DHTISSUE-24D homogenizer is a special, fast, efficient, and consistent system with multiple tubes. It can extract and purify raw DNA, RNA, and proteins from any source, including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.
Product Features
DHTISSUE-24D homogenizer has the advantages of wide applicability, high efficiency, and flexibility compared to other sample preparation methods currently available. The system avoids the many disadvantages of traditional methods such as grinding, homogenization, and ultrasonic treatment, which are laborious, time-consuming, and inefficient, and can efficiently, quickly, and stably lyse and purify nucleic acids and proteins of various types of samples.


Product Application
Sample Types:
1. Plant tissue: roots, stems, leaves, flowers, fruits, seeds, etc.
2. Animal tissue: brain, heart, lungs, stomach, liver, thymus, kidney, intestines, lymph nodes, muscles, bones, etc.
3. Fungi and bacteria: yeast, E. coli, etc.
4. Food and drugs: various foods, tablets, etc.
5. Volatile samples: coal, oil shale, wax products, etc.
6. Plastics and polymers: PE, PS, textiles, resins, etc.
homogenizer_tissuelyser
DHTISSUE-24D animal tissue homogenizer uses a special vertical up-down integrated vibration mode, which rapidly achieves the purpose of homogenization through the high-frequency reciprocating vibration, impact, and shearing of the grinding beads (zirconia, steel beads, glass beads, ceramic beads). This ensures that the homogenized sample is more complete, uniform, and has better repeatability, and there is no cross-contamination between samples.

Advantages Description
High efficiency and effectiveness Quickly and efficiently grind 2×24, 2×48, and 4×96 samples in one minute. Time-saving, labor-saving, small inter-batch and intra-batch differences. The extracted protein has higher activity and the nucleic acid fragments are longer.
No cross-contamination Sample tubes are in a completely sealed state during the crushing process, and disposable centrifuge tubes and beads can be used. Samples are kept intact in the tube, avoiding cross-contamination between samples and external contamination.
Easy operation 1. Built-in program controller for setting grinding time, vibration frequency of the rotor, and other parameters;
2. User-friendly interface.
Good stability 1. Uses a vertical oscillation method for more thorough grinding and better stability;
2. During instrument operation, the noise is less than 55dB, and it will not interfere with other experiments or instruments.
Convenient for low-temperature operation When a low-temperature grinding environment is needed, the adapter with the sample can be immersed in liquid nitrogen for 1-2 minutes to cool, and then quickly fixed on the main unit to start grinding, without the need for additional freezing treatment, saving liquid nitrogen.
Good reproducibility Same grinding effect can be obtained with the same program settings for the same tissue sample. Short working time, sample temperature will not increase.


Technical Parameters
Application fields: Organic grinding, homogenization, cell disruption, emulsification, material dispersion, preparation, sample mixing, and oscillation, etc.
Processing capacity: Maximum processing capacity for 24 samples within 15 seconds, including the use of 12-well and 24-well liquid nitrogen cryogenic adapters.
Compatible sample tubes: 24*(0.2-0.5ML) /24*2ML /6*(7-15)ML /2*25ML /2*50ML, various specifications of grinding tubes can be customized.
Display mode: LCD screen display, touch screen display (upgradeable).
Anti-vibration principle: Germany Schleifen-1 innovative anti-vibration principle and three-dimensional integrated motion mode of up and down and left and right shaking--innovative grinding bead motion mode, which ensures the maximum processing and instant crushing effect of samples.
Maximum feeding size: No requirement, adjustable according to the adapter.
Final discharge particle size: ~5µm.
Number of grinding platforms: (acceptable number of grinding jars) >2.
Fastening device: With automatic centering and positioning.
Homogenization speed: 0~70 Hz/second, working time: 0 second~99 minutes, user can set it by themselves.
Diameter of grinding balls: 0.02~30mm.
Material of grinding balls: Alloy steel, chrome steel, zirconia, tungsten carbide, and quartz sand.
Acceleration: Reach maximum speed within 2 seconds.
Deceleration: Reach minimum speed within 2 seconds.
Noise level: <55db.
Grinding mode: Wet grinding, dry grinding, and low-temperature grinding are all possible
Thermostat can be equipped with: Ability to upgrade to ultra-low temperature liquid nitrogen freezing or air refrigeration cooling
Adapter material: Polytetrafluoroethylene, alloy steel
Safety instructions: Fastening device with automatic center positioning, safety lock during operation, full protection throughout
Grinding kit material: Hard alloy, polytetrafluoroethylene (Teflon), zirconia
Dimensions: 41*34*55cm
Weight: 28 Kg

Product List
DHTISSUE-24D Unit
Host Machine Unit
Adapters set
Cooling Adapter Set
Stainless steel grinding bead No.5 piece
Zirconia Grinding Bead No.5 Piece
Stainless steel grinding bead No.3 piece
Special Grinding Tube Piece
Special Bead Loading Gun Set
Extraction kit: animal tissue-DNA set
Extraction kit: animal tissue-RNA set
Extraction kit: animal tissue-protein set
Extraction kit: plant tissue-DNA set
Extraction kit: plant tissue-RNA set
Extraction kit: plant tissue-protein set
Extraction kit: microbial DNA set
Extraction kit: microbial RNA set
Extraction kit: microbial protein set
Description
1
Ø2ml,1（2 in 1）
Ø2orØ1.5ml,1（2 in 1）
1000（2 in 1）
1000（2 in 1）
1000
200
1（Optional）
LW-D-P1（Optional）
LW-D-P2（Optional）
LW-D-P3（Optional ）
LW-Z-P1（Optional）
LW-Z-P2（Optional ）
LW-Z-P3（Optional ）
LW-W-P1（Optional）
LW-W-P2（Optional）
LW-W-P3（Optional）
